Bridge bearings
QZ spherical bearing
Spherical bearing for vertical load, rotation and horizontal movement.
The spherical interface accommodates rotation while the sliding and restraint components determine horizontal movement. The series includes fixed, guided and multidirectional configurations.
Configuration & selection
GD — fixed
DX — guided sliding
SX — multidirectional sliding
For selection, send the design loads, movement requirements and connection drawings. Confirm the model, dimensions and interfaces against your project drawings.

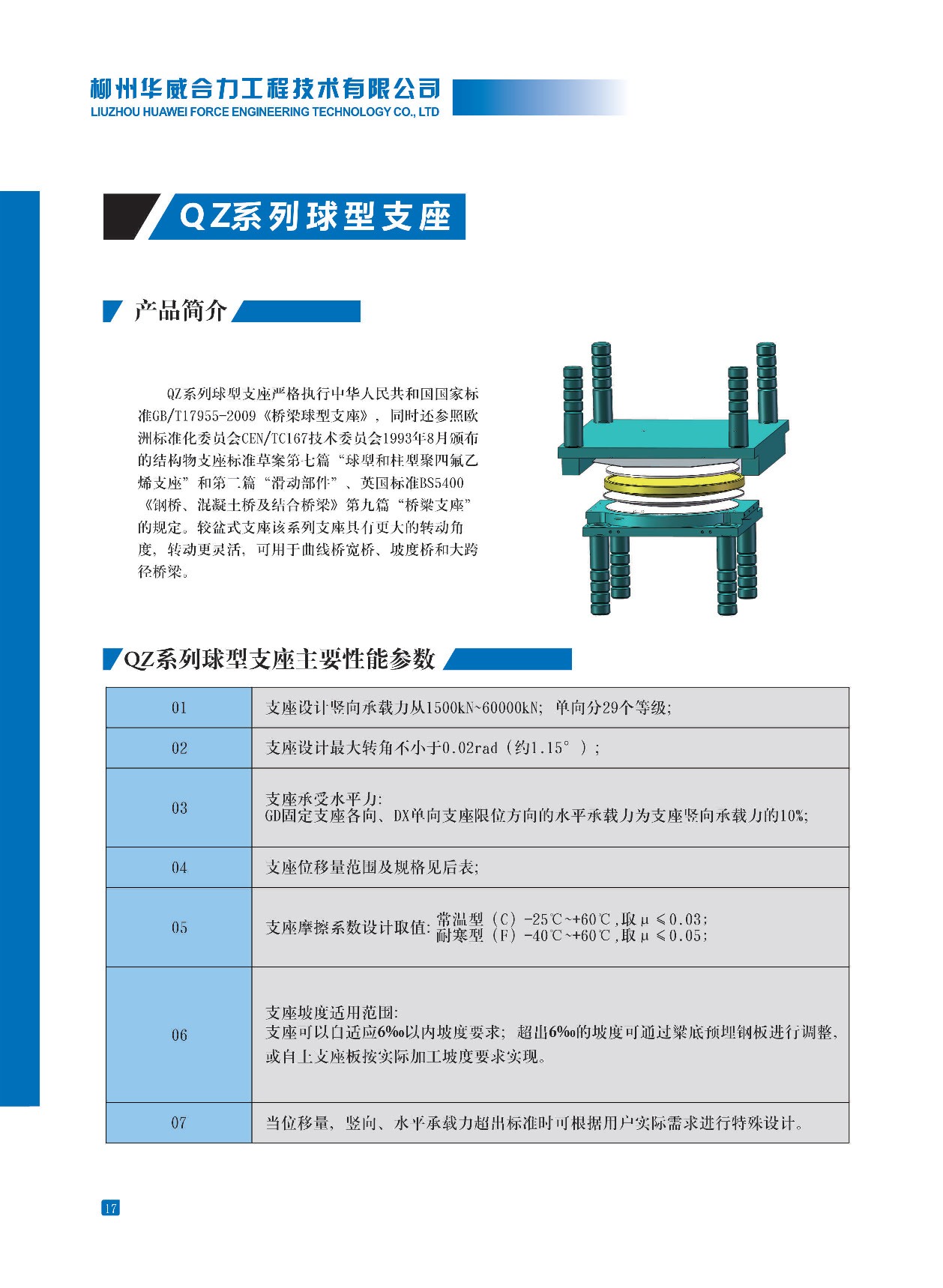

Technical information
